Waldner DOSOMAT Pouch Filling & Sealing Technology

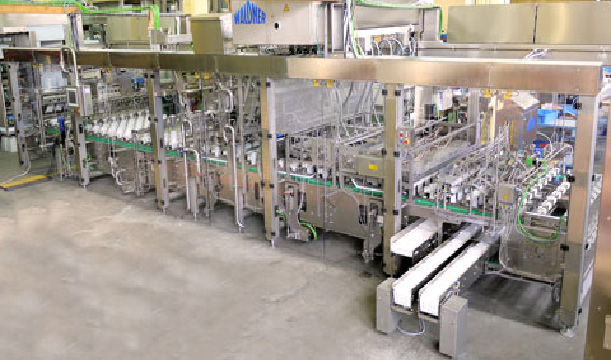

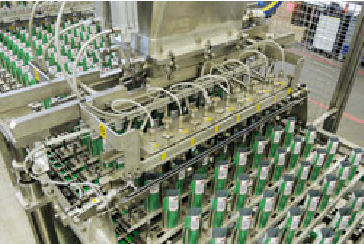

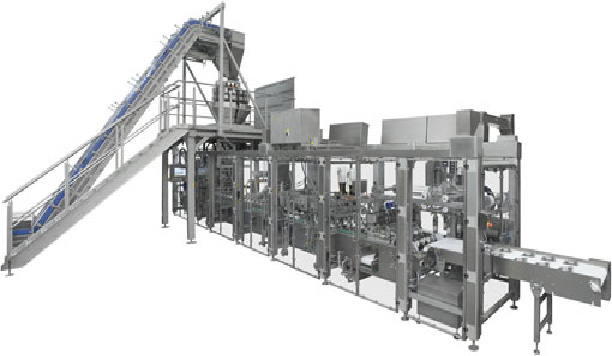

Waldner’s DOSOMAT Rotary and Inline Pouch systems offer solutions for low output pouch filling and high productivity, high-volume pouch filling applications. Each stage of this process insures extremely efficient control and handling of the pouch, multiple pouch filling options including advanced filling systems combined with ultrasonic sealing.

ROTARY

• Low output solutions and Pilot Lab solutions in rotary format
• Capacity: Up to 100* pouches per minute.

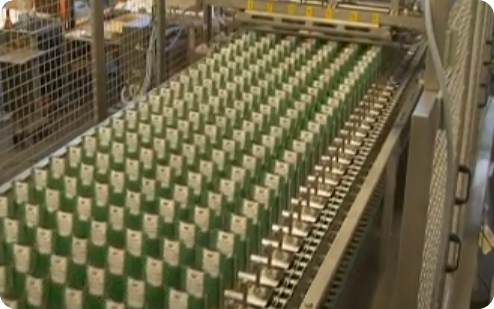

INLINE

• For high-productivity, high-volume pouch filling
• Capacity: Up to 500* pouches per minute.

*Capacities are application dependent

BENEFITS

• High productivity, Lower cost of operation out-the-door
• Exceptional finished pouch presentation
• Less infrastructure, floor space and operators

POUCH HANDLING SYSTEM

• Complete pouch control with servo driven pouch loading, opening, closing, & discharge
• All critical functions operate in stationary mode
• Innovative pouch clamping system
• Concurrent pouch opening: inward motion of clamping system, top and bottom suction cups on both sides, and airblast

MACHINE FEATURES

• Ultrasonic sealing with optional cosmetic seal
• Inline sampling, automated checkweighing with feedback
• Complete servo control for optimized motion
• Automated, controlled discharge to retort, integrated cartoning or case packing

APPLICATION HIGHLIGHTS

• Volumes from 25 grams to #10 can replacement pouches
• Unlimited product fill applications
  • Hot, Cold or IQF
  • Particulates, pumpables and/or liquids
  • Retortable or shelf-stable products

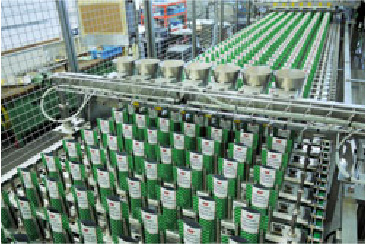

  • Dry fill applications
• Beverage applications with integrated straw/spout and cap
• Various pouch sizes, materials and types of closure capabilities

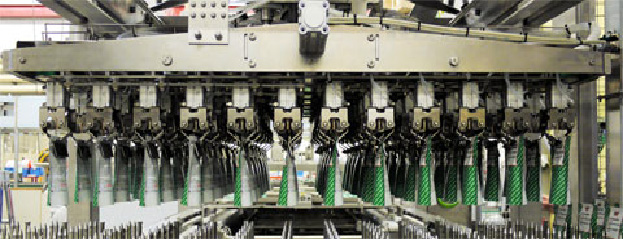

Integrated Downstream Solutions

Various options available for pick and place, discharge to retort and case packing solutions
